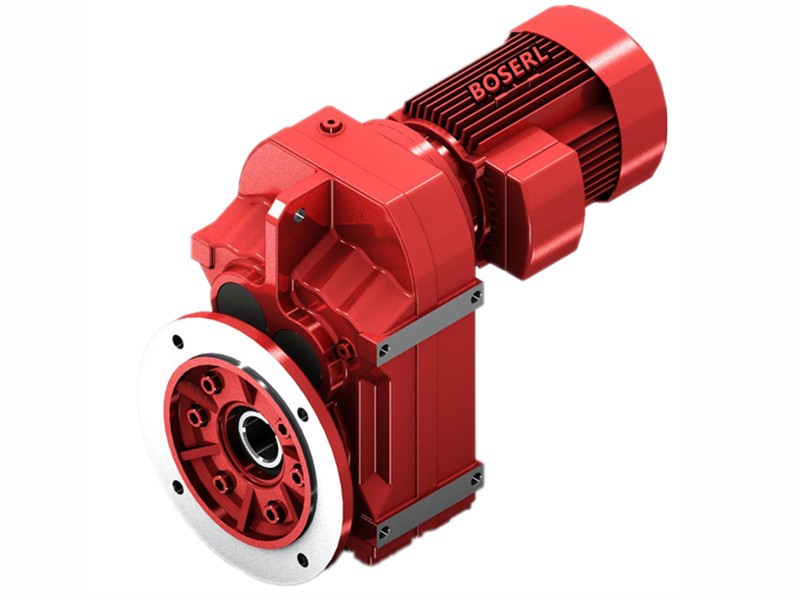

FAF27DV80S4詳細信息
FAF27DV80S4
訂購熱線：13360667204
關鍵詞：一分鐘322轉減速機電機_FAF27DV80S4_FAF27DRN80S4
FAF27DV80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF27DV80S4 | 23.25 | 0.55KW | 59.0rpm | 88N.m | 25Kg | 3200N | 1.45 |
| FAF27DV80S4 | 20.15 | 0.55KW | 68.0rpm | 77N.m | 25Kg | 3120N | 1.70 |
| FAF27DV80S4 | 18.84 | 0.55KW | 73.0rpm | 72N.m | 25Kg | 3080N | 1.80 |
| FAF27DV80S4 | 16.28 | 0.55KW | 85.0rpm | 62N.m | 25Kg | 2990N | 2.10 |
| FAF27DV80S4 | 13.84 | 0.55KW | 100rpm | 53N.m | 25Kg | 2890N | 2.50 |
| FAF27DV80S4 | 12.35 | 0.55KW | 112rpm | 47N.m | 25Kg | 2810N | 2.80 |
| FAF27DV80S4 | 10.55 | 0.55KW | 131rpm | 40N.m | 25Kg | 2710N | 3.20 |
| FAF27DV80S4 | 9.88 | 0.55KW | 140rpm | 38N.m | 25Kg | 2660N | 3.50 |
| FAF27DV80S4 | 9.40 | 0.55KW | 147rpm | 36N.m | 25Kg | 2600N | 3.60 |
| FAF27DV80S4 | 8.13 | 0.55KW | 170rpm | 31N.m | 25Kg | 2500N | 4.00 |
| FAF27DV80S4 | 6.91 | 0.55KW | 200rpm | 26N.m | 25Kg | 2400N | 4.30 |
| FAF27DV80S4 | 6.17 | 0.55KW | 224rpm | 24N.m | 25Kg | 2330N | 4.60 |
| FAF27DV80S4 | 5.27 | 0.55KW | 262rpm | 20N.m | 25Kg | 2230N | 5.00 |
| FAF27DV80S4 | 4.93 | 0.55KW | 280rpm | 19N.m | 25Kg | 2190N | 5.10 |
| FAF27DV80S4 | 4.16 | 0.55KW | 332rpm | 16N.m | 25Kg | 2090N | 5.50 |
FAF27DRN80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF27DRN80S4 | 23.25 | 0.55KW | 59.0rpm | 88N.m | 25Kg | 3200N | 1.45 |
| FAF27DRN80S4 | 20.15 | 0.55KW | 68.0rpm | 77N.m | 25Kg | 3120N | 1.70 |
| FAF27DRN80S4 | 18.84 | 0.55KW | 73.0rpm | 72N.m | 25Kg | 3080N | 1.80 |
| FAF27DRN80S4 | 16.28 | 0.55KW | 85.0rpm | 62N.m | 25Kg | 2990N | 2.10 |
| FAF27DRN80S4 | 13.84 | 0.55KW | 100rpm | 53N.m | 25Kg | 2890N | 2.50 |
| FAF27DRN80S4 | 12.35 | 0.55KW | 112rpm | 47N.m | 25Kg | 2810N | 2.80 |
| FAF27DRN80S4 | 10.55 | 0.55KW | 131rpm | 40N.m | 25Kg | 2710N | 3.20 |
| FAF27DRN80S4 | 9.88 | 0.55KW | 140rpm | 38N.m | 25Kg | 2660N | 3.50 |
| FAF27DRN80S4 | 9.40 | 0.55KW | 147rpm | 36N.m | 25Kg | 2600N | 3.60 |
| FAF27DRN80S4 | 8.13 | 0.55KW | 170rpm | 31N.m | 25Kg | 2500N | 4.00 |
| FAF27DRN80S4 | 6.91 | 0.55KW | 200rpm | 26N.m | 25Kg | 2400N | 4.30 |
| FAF27DRN80S4 | 6.17 | 0.55KW | 224rpm | 24N.m | 25Kg | 2330N | 4.60 |
| FAF27DRN80S4 | 5.27 | 0.55KW | 262rpm | 20N.m | 25Kg | 2230N | 5.00 |
| FAF27DRN80S4 | 4.93 | 0.55KW | 280rpm | 19N.m | 25Kg | 2190N | 5.10 |
| FAF27DRN80S4 | 4.16 | 0.55KW | 332rpm | 16N.m | 25Kg | 2090N | 5.50 |
FAF27DV80S4電機減速機類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

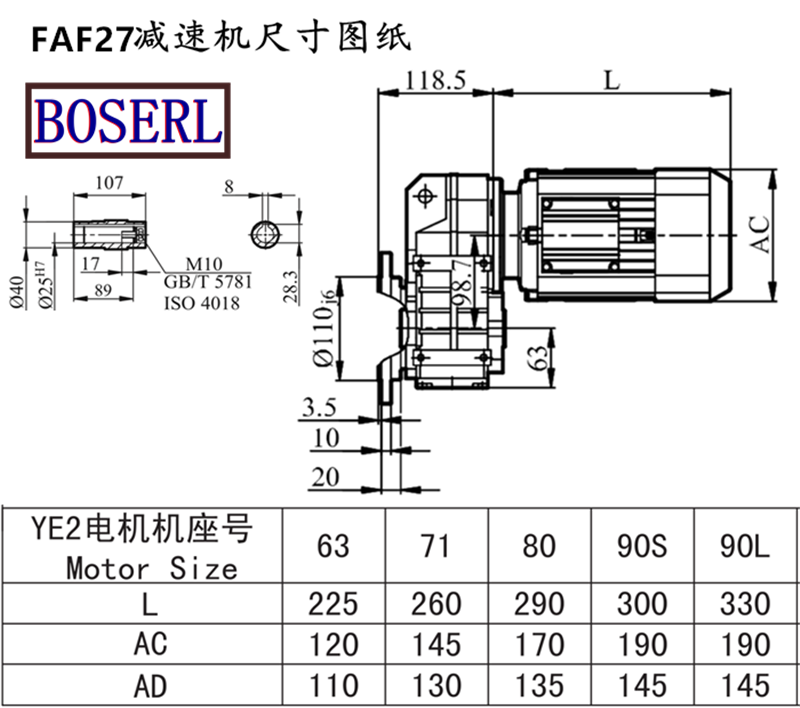

FAF27DV80S4電機減速機安裝尺寸圖紙
FAF27DV80S4電機減速機生產廠家，看廠請?zhí)崆叭祛A(yù)約三相220V電機減速機
關鍵詞:FAF系列減速機與電機_220V電機減速機一套_三相220V電機減速器_380V電機減速機_三相380V電機減速器_三相減速電機_三相減速機生產廠家
FAF系列減速機型號：FAF27減速機,FAF37減速機,FAF47減速機,FAF67減速機,FAF77減速機,FAF87減速機,FAF97減速機,FAF107減速機,FAF127減速機,FAF157減速機
FAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
