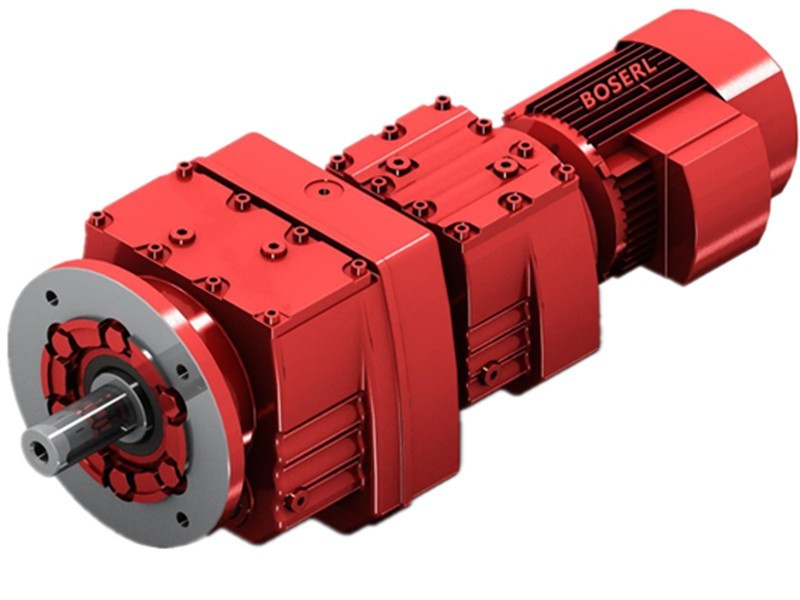

RF137R77DM71S4詳細信息
RF137R77DM71S4
訂購熱線：13360667204
關鍵詞：22KW電機能配多大立式斜齒輪減速箱_RF137R77DM71S4_RF137R77DT80K4
RF137R77DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF137R77DM71S4 | 5834 | 0.25KW | 0.22r/min | 8660N.m | 266kg | 51100N | 0.90 |
| RF137R77DM71S4 | 5116 | 0.25KW | 0.25r/min | 7960N.m | 266kg | 53500N | 1.00 |
| RF137R77DM71S4 | 4464 | 0.25KW | 0.29r/min | 6740N.m | 266kg | 55800N | 1.20 |
| RF137R77DM71S4 | 3928 | 0.25KW | 0.33r/min | 5930N.m | 266kg | 57100N | 1.35 |
| RF137R77DM71S4 | 4709 | 0.25KW | 0.28r/min | 7430N.m | 266kg | 54600N | 1.10 |
| RF137R77DM71S4 | 4018 | 0.25KW | 0.32r/min | 6340N.m | 266kg | 56500N | 1.25 |
| RF137R77DM71S4 | 3514 | 0.25KW | 0.37r/min | 5540N.m | 266kg | 57700N | 1.45 |
| RF137R77DM71S4 | 3338 | 0.25KW | 0.39r/min | 5260N.m | 266kg | 58100N | 1.50 |
| RF137R77DM71S4 | 2929 | 0.25KW | 0.44r/min | 4620N.m | 266kg | 58900N | 1.75 |
| RF137R77DM71S4 | 2658 | 0.25KW | 0.49r/min | 4180N.m | 266kg | 59300N | 1.90 |
| RF137R77DM71S4 | 2412 | 0.25KW | 0.54r/min | 3800N.m | 266kg | 59700N | 2.10 |
| RF137R77DM71S4 | 2073 | 0.25KW | 0.63r/min | 3260N.m | 266kg | 60100N | 2.40 |
| RF137R77DM71S4 | 1839 | 0.25KW | 0.71r/min | 2810N.m | 266kg | 60500N | 2.80 |
| RF137R77DM71S4 | 1397 | 0.25KW | 0.93r/min | 2180N.m | 266kg | 60800N | 3.70 |
| RF137R77DM71S4 | 1226 | 0.25KW | 1.10r/min | 1880N.m | 266kg | 61000N | 4.20 |
RF137R77DT80K4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF137R77DT80K4 | 2484 | 0.55KW | 0.56r/min | 8510N.m | 271kg | 51800N | 0.95 |
| RF137R77DT80K4 | 2658 | 0.55KW | 0.52r/min | 9110N.m | 271kg | 47600N | 0.90 |
| RF137R77DT80K4 | 2412 | 0.55KW | 0.57r/min | 8260N.m | 271kg | 52800N | 0.95 |
| RF137R77DT80K4 | 2073 | 0.55KW | 0.67r/min | 7100N.m | 271kg | 55200N | 1.15 |
| RF137R77DT80K4 | 1839 | 0.55KW | 0.75r/min | 6210N.m | 271kg | 56700N | 1.30 |
| RF137R77DT80K4 | 1598 | 0.55KW | 0.86r/min | 5330N.m | 271kg | 58000N | 1.50 |
| RF137R77DT80K4 | 1397 | 0.55KW | 0.99r/min | 4760N.m | 271kg | 58700N | 1.70 |
| RF137R77DT80K4 | 1226 | 0.55KW | 1.10r/min | 4150N.m | 271kg | 59300N | 1.90 |
| RF137R77DT80K4 | 1090 | 0.55KW | 1.30r/min | 3710N.m | 271kg | 59800N | 2.20 |
| RF137R77DT80K4 | 951 | 0.55KW | 1.40r/min | 3240N.m | 271kg | 60200N | 2.50 |
| RF137R77DT80K4 | 831 | 0.55KW | 1.70r/min | 2770N.m | 271kg | 60500N | 2.90 |
RF137R77DM71S4減速機類型：
RX137R77DM71S4單級底腳安裝斜齒輪減速電機
RXF137R77DM71S4單級B5法蘭安裝斜齒輪減速機電機
R137R77DM71S4底腳安裝斜齒輪減速電機
R137FR77DM71S4底腳、B5法蘭安裝斜齒輪減速電機
RF137R77DM71S4B5法蘭安裝斜齒輪減速電機
RZ137R77DM71S4B14法蘭安裝斜齒輪減速電機
RF137R77DM71S4減速機馬達安裝尺寸圖紙
RF137R77DM71S4減速機電機生產廠家，看廠請?zhí)崆叭祛A(yù)約直線輸出減速機
關鍵詞:RF系列減速機與電機_立式減速機_立式齒輪減速電機一套_立式齒輪減速機_RF系列減速機生產廠家_立式減速機生產廠家_立式齒輪減速機生產廠家
RF系列減速機型號：RF17減速機,RF27減速機,RF37減速機,RF47減速機,RF57減速機,RF67減速機,RF77減速機,RF87減速機,RF97減速機,RF107減速機,RF137減速機,RF147減速機,RF167減速機
RF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
