RF37DRE71M4詳細信息
RF37DRE71M4
訂購熱線：13360667204
關鍵詞：110KW380伏減速電機_RF37DRE71M4_RF37DM71M4
RF37DRE71M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF37DRE71M4 | 90.77 | 0.37KW | 15.0rpm | 230N.m | 19kg | 4250N | 0.85 |
| RF37DRE71M4 | 84.61 | 0.37KW | 16.0rpm | 215N.m | 19kg | 4720N | 0.90 |
| RF37DRE71M4 | 73.96 | 0.37KW | 19.0rpm | 189N.m | 19kg | 5070N | 1.05 |
| RF37DRE71M4 | 69.33 | 0.37KW | 20.0rpm | 178N.m | 19kg | 5210N | 1.15 |
| RF37DRE71M4 | 61.18 | 0.37KW | 23.0rpm | 157N.m | 19kg | 5410N | 1.30 |
| RF37DRE71M4 | 55.76 | 0.37KW | 25.0rpm | 143N.m | 19kg | 5530N | 1.40 |
| RF37DRE71M4 | 48.08 | 0.37KW | 29.0rpm | 123N.m | 19kg | 5580N | 1.60 |
| RF37DRE71M4 | 44.81 | 0.37KW | 31.0rpm | 115N.m | 19kg | 5480N | 1.75 |
| RF37DRE71M4 | 39.17 | 0.37KW | 35.0rpm | 100N.m | 19kg | 5280N | 2.00 |
| RF37DRE71M4 | 36.72 | 0.37KW | 38.0rpm | 94N.m | 19kg | 5190N | 2.10 |
| RF37DRE71M4 | 32.40 | 0.37KW | 43.0rpm | 83N.m | 19kg | 5010N | 2.40 |
| RF37DRE71M4 | 28.73 | 0.37KW | 48.0rpm | 74N.m | 19kg | 4850N | 2.70 |
| RF37DRE71M4 | 24.42 | 0.37KW | 57.0rpm | 62N.m | 19kg | 4620N | 3.20 |
| RF37DRE71M4 | 28.32 | 0.37KW | 49.0rpm | 72N.m | 19kg | 4830N | 2.80 |
| RF37DRE71M4 | 26.03 | 0.37KW | 53.0rpm | 67N.m | 19kg | 4710N | 2.80 |
| RF37DRE71M4 | 22.27 | 0.37KW | 62.0rpm | 57N.m | 19kg | 4500N | 3.50 |
| RF37DRE71M4 | 19.31 | 0.37KW | 71.0rpm | 49N.m | 19kg | 4320N | 4.00 |
| RF37DRE71M4 | 18.05 | 0.37KW | 76.0rpm | 46N.m | 19kg | 4230N | 4.30 |
| RF37DRE71M4 | 15.60 | 0.37KW | 88.0rpm | 40N.m | 19kg | 4050N | 5.00 |
| RF37DRE71M4 | 13.25 | 0.37KW | 104rpm | 34N.m | 19kg | 3850N | 5.60 |
| RF37DRE71M4 | 11.83 | 0.37KW | 117rpm | 30N.m | 19kg | 3720N | 6.00 |
RF37DM71M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF37DM71M4 | 90.77 | 0.37KW | 15.0rpm | 230N.m | 19kg | 4250N | 0.85 |
| RF37DM71M4 | 84.61 | 0.37KW | 16.0rpm | 215N.m | 19kg | 4720N | 0.90 |
| RF37DM71M4 | 73.96 | 0.37KW | 19.0rpm | 189N.m | 19kg | 5070N | 1.05 |
| RF37DM71M4 | 69.33 | 0.37KW | 20.0rpm | 178N.m | 19kg | 5210N | 1.15 |
| RF37DM71M4 | 61.18 | 0.37KW | 23.0rpm | 157N.m | 19kg | 5410N | 1.30 |
| RF37DM71M4 | 55.76 | 0.37KW | 25.0rpm | 143N.m | 19kg | 5530N | 1.40 |
| RF37DM71M4 | 48.08 | 0.37KW | 29.0rpm | 123N.m | 19kg | 5580N | 1.60 |
| RF37DM71M4 | 44.81 | 0.37KW | 31.0rpm | 115N.m | 19kg | 5480N | 1.75 |
| RF37DM71M4 | 39.17 | 0.37KW | 35.0rpm | 100N.m | 19kg | 5280N | 2.00 |
| RF37DM71M4 | 36.72 | 0.37KW | 38.0rpm | 94N.m | 19kg | 5190N | 2.10 |
| RF37DM71M4 | 32.40 | 0.37KW | 43.0rpm | 83N.m | 19kg | 5010N | 2.40 |
| RF37DM71M4 | 28.73 | 0.37KW | 48.0rpm | 74N.m | 19kg | 4850N | 2.70 |
| RF37DM71M4 | 24.42 | 0.37KW | 57.0rpm | 62N.m | 19kg | 4620N | 3.20 |
| RF37DM71M4 | 28.32 | 0.37KW | 49.0rpm | 72N.m | 19kg | 4830N | 2.80 |
| RF37DM71M4 | 26.03 | 0.37KW | 53.0rpm | 67N.m | 19kg | 4710N | 2.80 |
| RF37DM71M4 | 22.27 | 0.37KW | 62.0rpm | 57N.m | 19kg | 4500N | 3.50 |
| RF37DM71M4 | 19.31 | 0.37KW | 71.0rpm | 49N.m | 19kg | 4320N | 4.00 |
| RF37DM71M4 | 18.05 | 0.37KW | 76.0rpm | 46N.m | 19kg | 4230N | 4.30 |
| RF37DM71M4 | 15.60 | 0.37KW | 88.0rpm | 40N.m | 19kg | 4050N | 5.00 |
| RF37DM71M4 | 13.25 | 0.37KW | 104rpm | 34N.m | 19kg | 3850N | 5.60 |
| RF37DM71M4 | 11.83 | 0.37KW | 117rpm | 30N.m | 19kg | 3720N | 6.00 |
RF37DRE71M4齒輪減速機馬達類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機

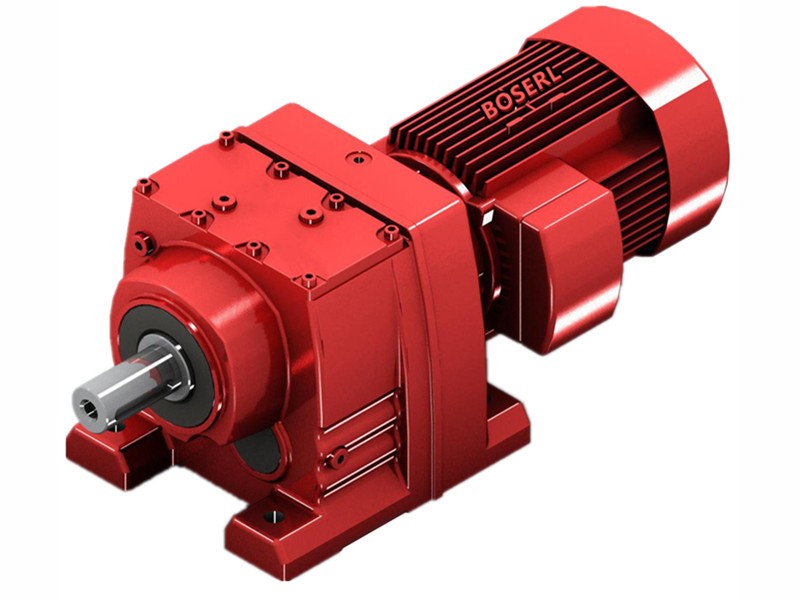

R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機

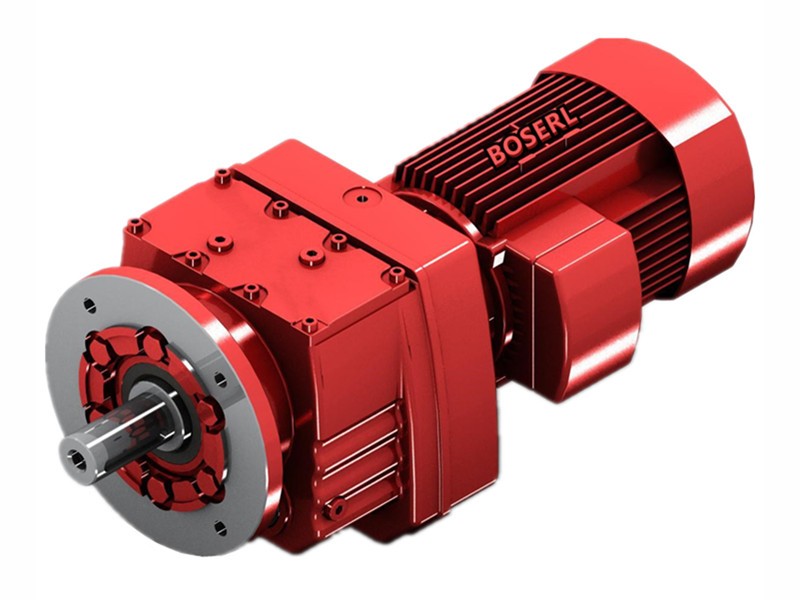

RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

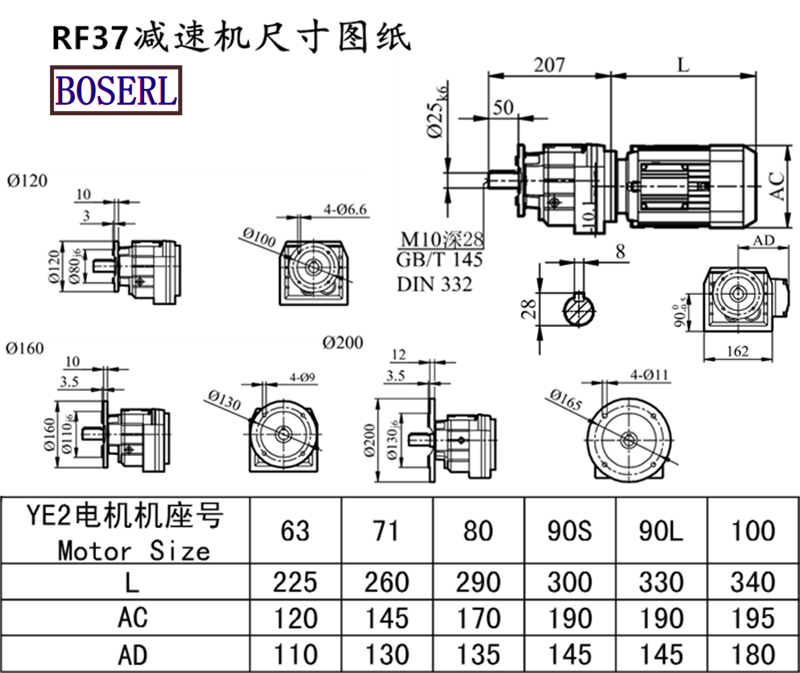

RF37DRE71M4齒輪減速機馬達安裝尺寸圖紙
RF37DRE71M4齒輪減速機馬達生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
立式減速機應用案例展示：
關鍵詞:RF系列減速機與電機_立式減速機_立式齒輪減速電機一套_立式齒輪減速機_RF系列減速機生產廠家_立式減速機生產廠家_立式齒輪減速機生產廠家
RF系列減速機型號：RF17減速機,RF27減速機,RF37減速機,RF47減速機,RF57減速機,RF67減速機,RF77減速機,RF87減速機,RF97減速機,RF107減速機,RF137減速機,RF147減速機,RF167減速機
RF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 110KW380伏減速電機 RF37DRE71M4 RF37DM71M4
